The Proxy pattern is used to wrap a complex or resource intensive object inside a proxy class.

This pattern is practical if for example the creation of a specific object may lead to slow performance because it takes a lot of memory.

In case you want to perform a simple quick action before the object is created to avoid performance loss you can slot in a proxy object ahead of the actual creation of this performance critical object.

There are plenty of use cases for the proxy pattern. One of which is for example a login interface to a system which only grants access to performance-heavy functionalities once a user has authorized.

This can protect social networking websites' servers like Facebook from high memory exhaustion. The heavy rich functionality is only unlocked when a user has registered and really logged in.

Proxies are often used as frontends to classes which

• grant access to sensitive data or
• slow operations.

In image-processing software a proxy class can be applied to as a placeholder on the screen which then activates the real rendering of the image.
In a similar way it can also be used to initiate and buffer a video stream.

Proxies as well as decorators pass requests on to other objects. What differentiates a proxy from a decorator is that the proxy is designed in advance before the code is written, whereas a decorator can be implemented in a later stage dynamically.

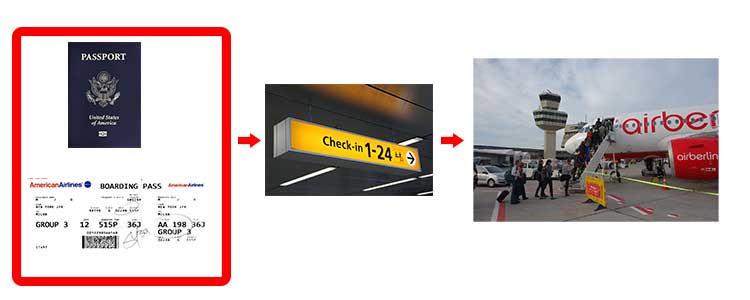

Imagine you design a simplified version of a check-in process for a flight like you might know it in airports.

First you need to show a valid passport and a and valid ticket/boarding pass. If all your documents are valid you are allowed to board the flight.

This scenario you can find in the following C# example with a proxy class which implements the boarding function "AllowBoarding". Only if the criteria of having a valid passport and a valid boarding pass are met, the passenger is allowed to board the flight.

C# example:


using System;
namespace Proxy
{
    public class ProxyPattern
    {
        interface ICheckIn {
            void AllowBoarding(string passengername);
        }

        public class Flight: ICheckIn {

            public void AllowBoarding(string passengername) {

                Console.WriteLine("Passenger " + passengername  + " is allowed to board the flight");

            }
        }

        public class Passenger {
            public string name;
            public bool hasValidPassport;
            public bool hasValidBoardingPass;

            public Passenger(string n, bool validpassport, bool validboardingpass) {
                name = n;
                hasValidPassport = validpassport;
                hasValidBoardingPass = validboardingpass;
            }
        }

        public class ProxyCheckIn: ICheckIn {
            private Passenger passenger;
            private Flight flight;

            public ProxyCheckIn(Passenger p)
            {
                this.passenger = p;
                this.flight = new Flight();
            }


            public void AllowBoarding(string passengername) {

                if(passenger.hasValidPassport && passenger.hasValidBoardingPass) {
                    this.flight.AllowBoarding(passenger.name);
                }
                else{
                    Console.WriteLine("The passenger " + passenger.name + " is not allowed to board the flight.");
                }

            }
        }

        class MainClass
        {

            public static void Main()
            {
                Passenger passenger1 = new Passenger("John Doe", true, false);
                ICheckIn checkin = new ProxyCheckIn(passenger1);
                checkin.AllowBoarding(passenger1.name);

                Passenger passenger2 = new Passenger("Judy Summers", true, true);
                checkin = new ProxyCheckIn(passenger2);
                checkin.AllowBoarding(passenger2.name);
            }
        }
    }
}




Console output:

The passenger John Doe is not allowed to board the flight.
Passenger Judy Summers is allowed to board the flight.
